Off-grid Inverter

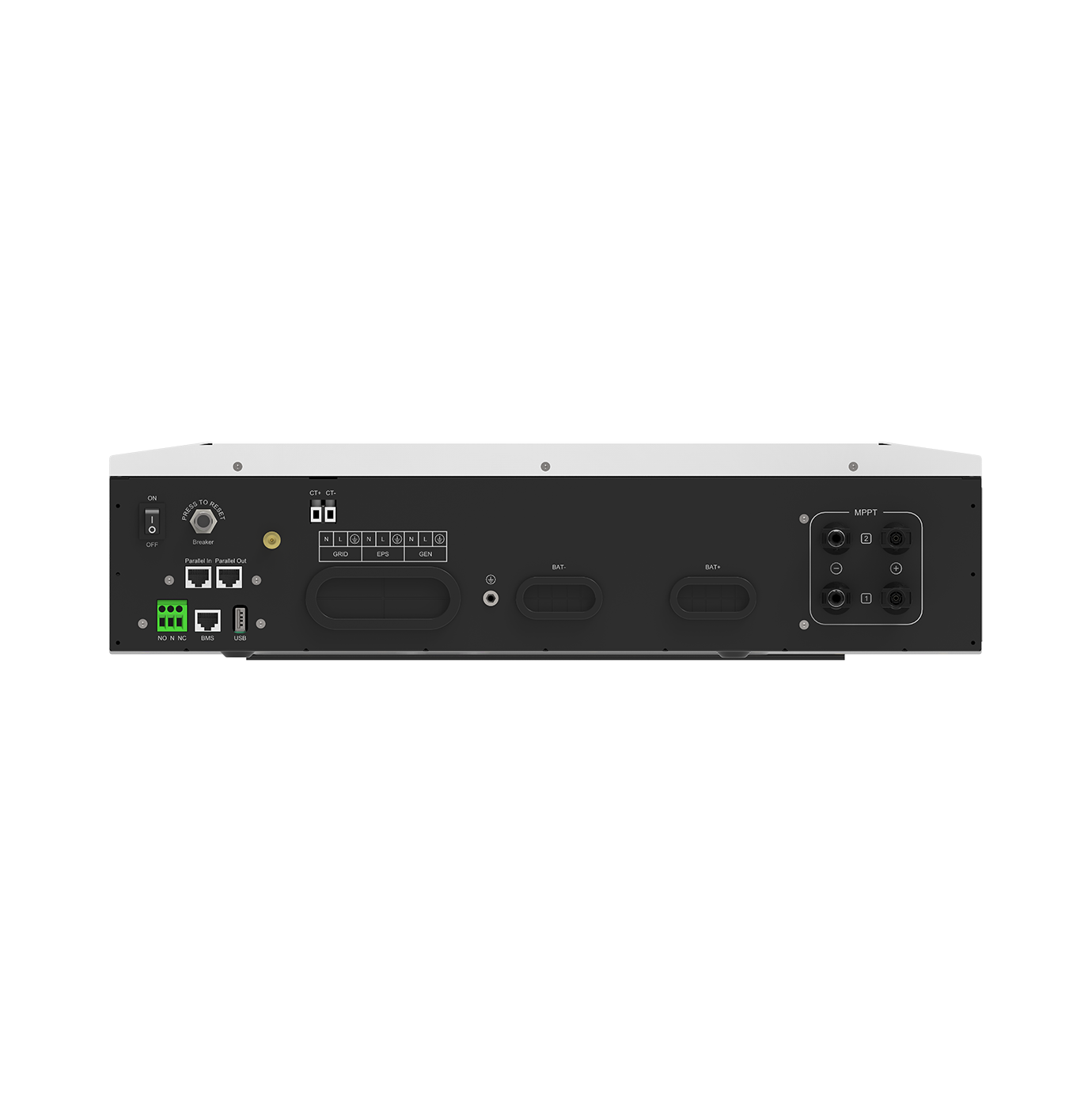

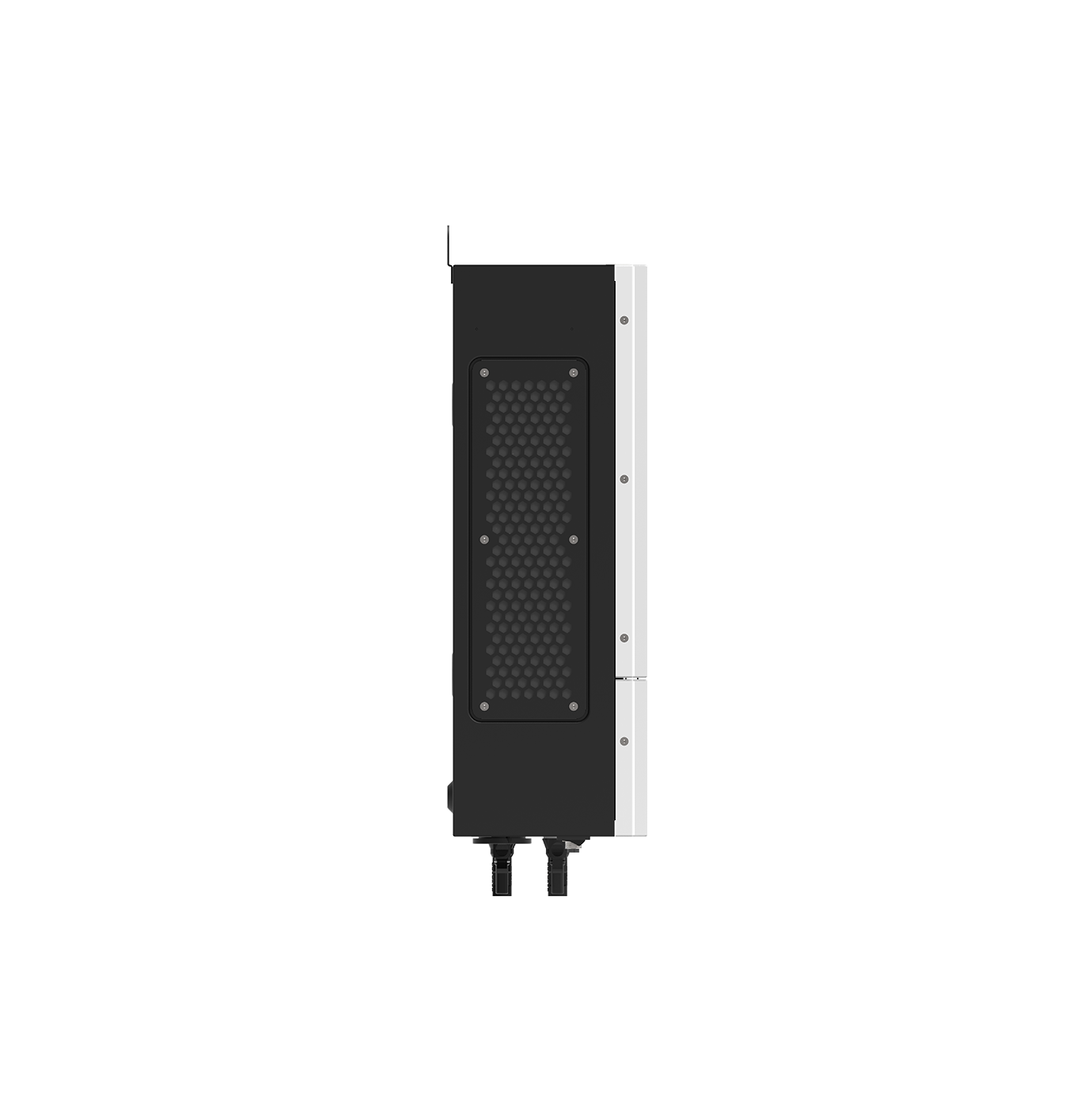

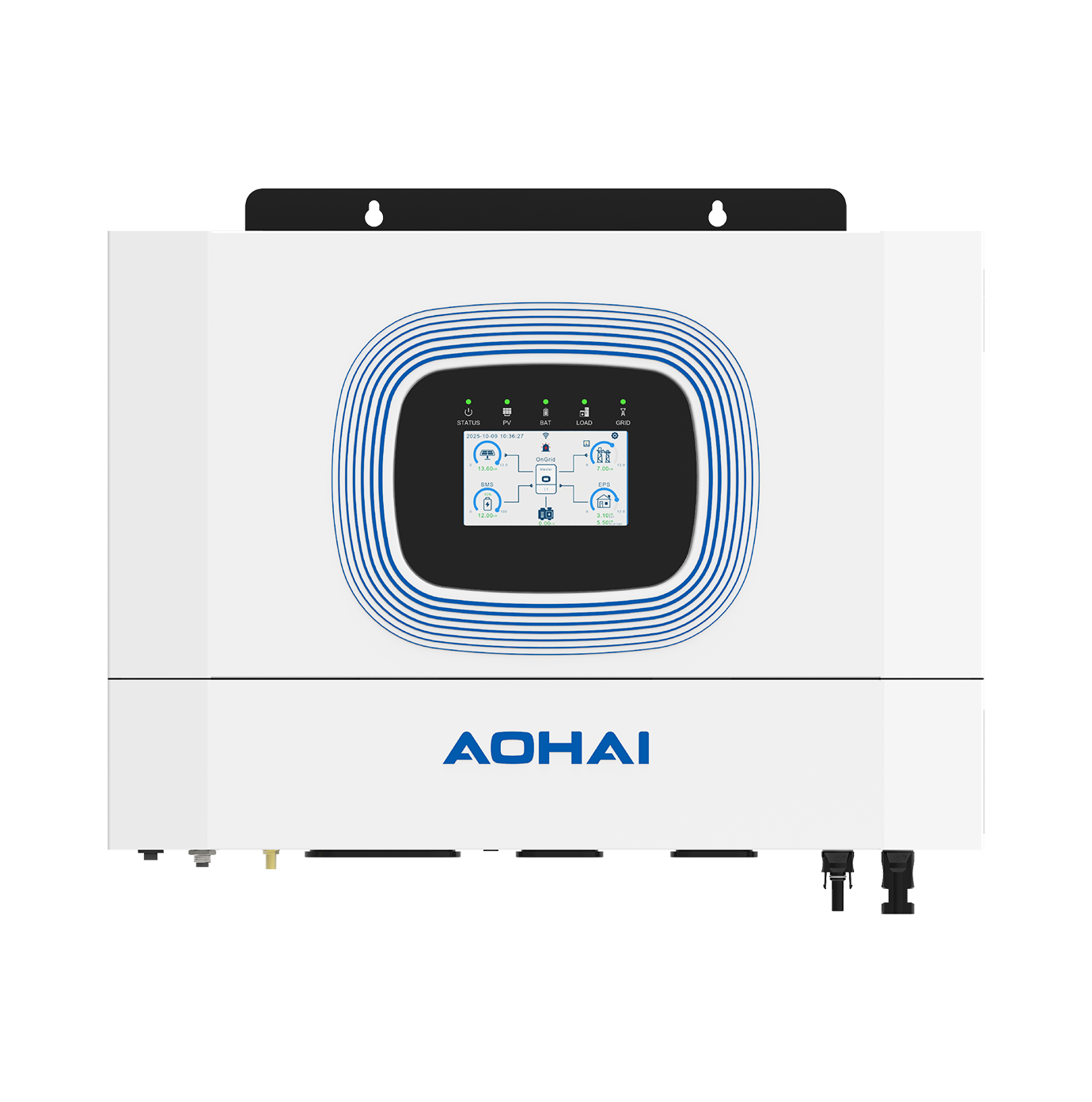

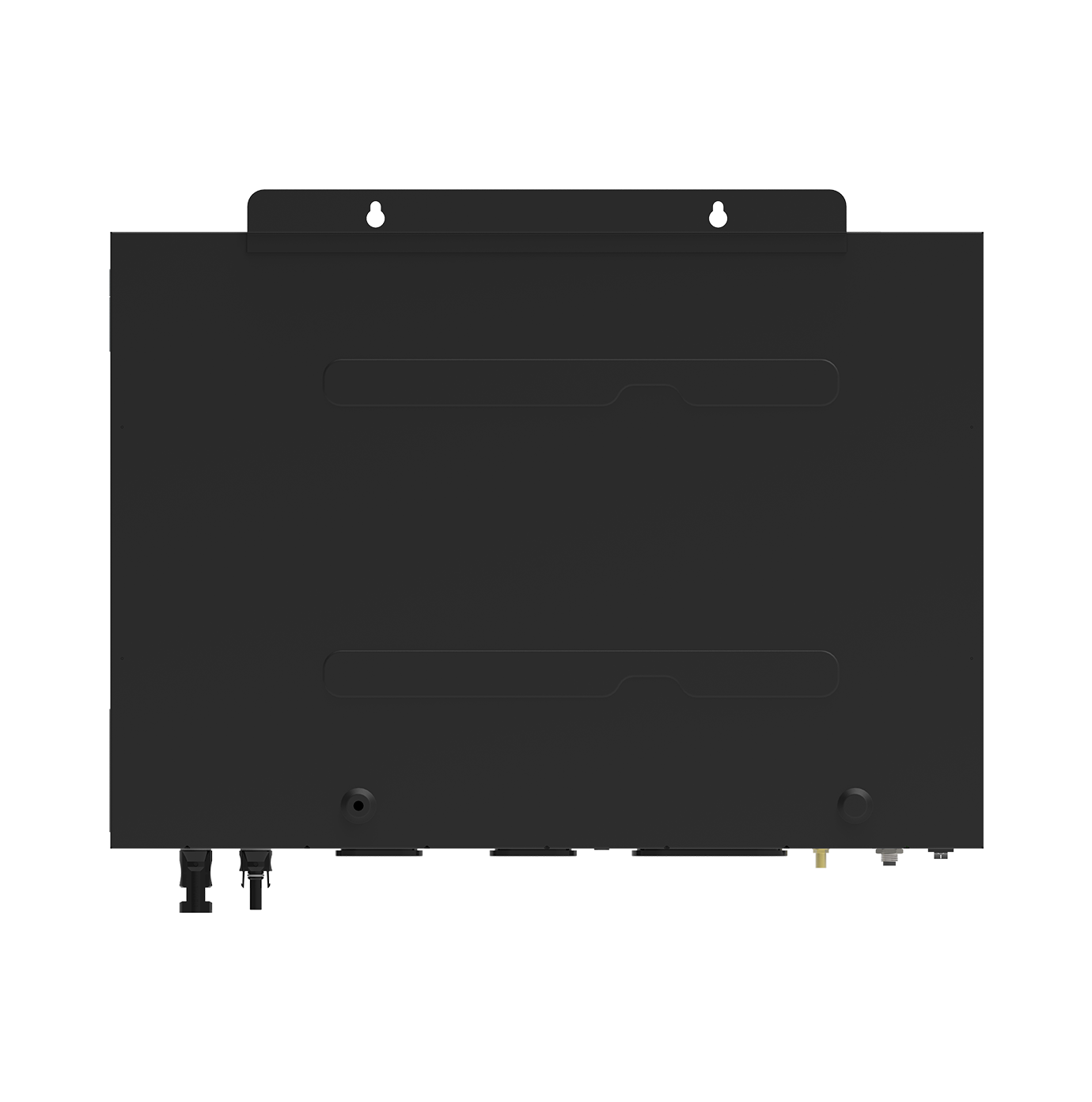

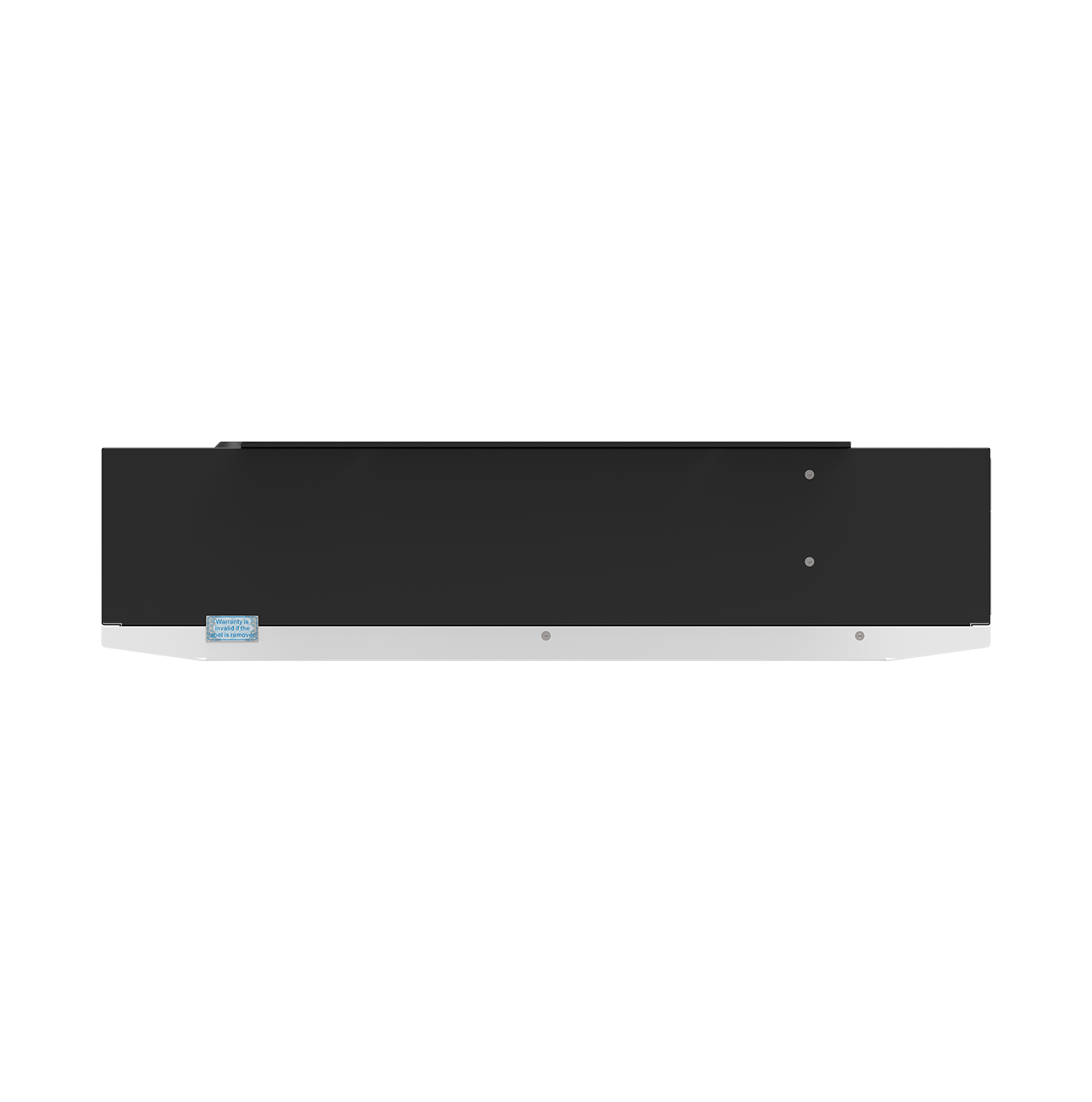

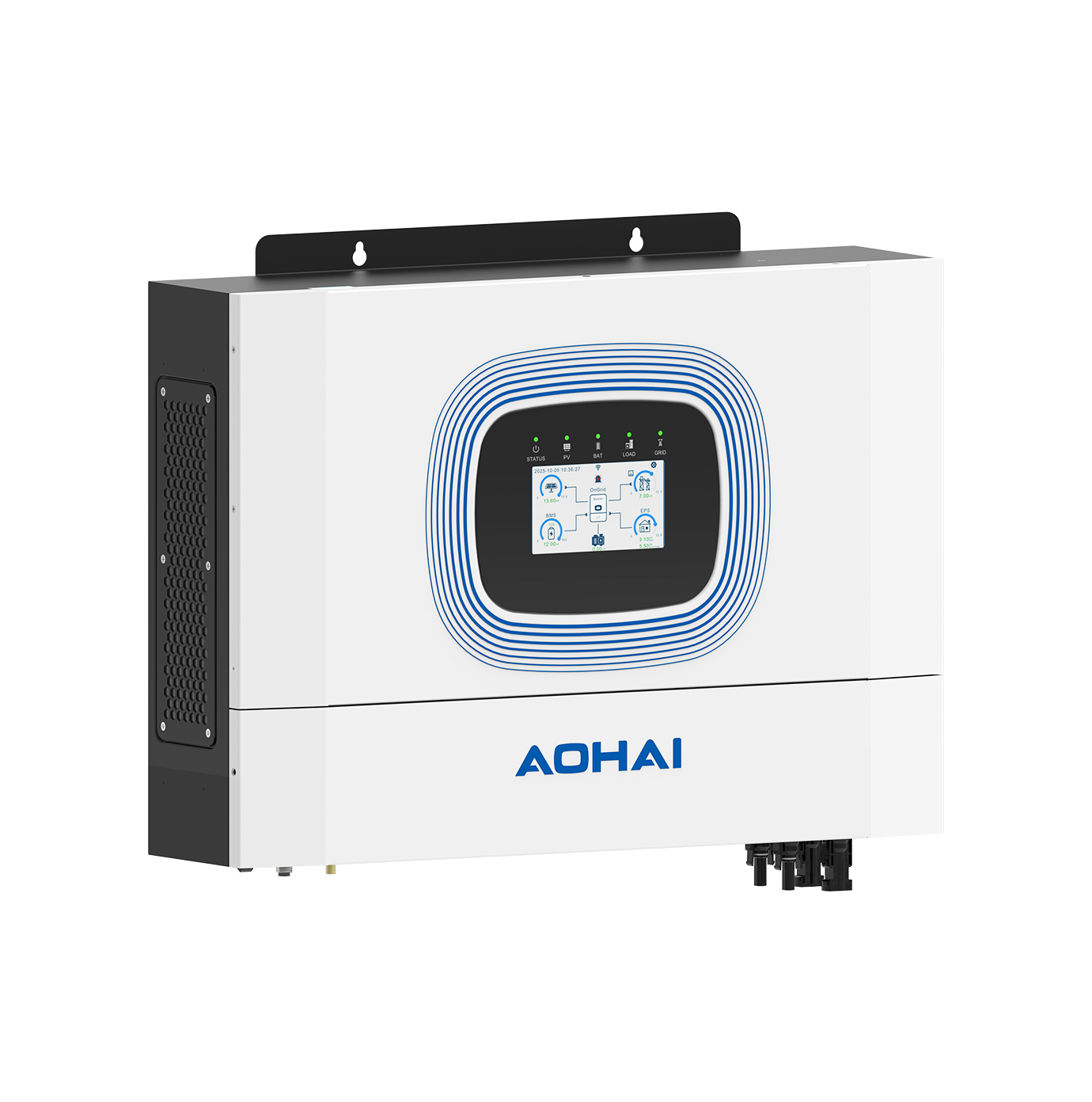

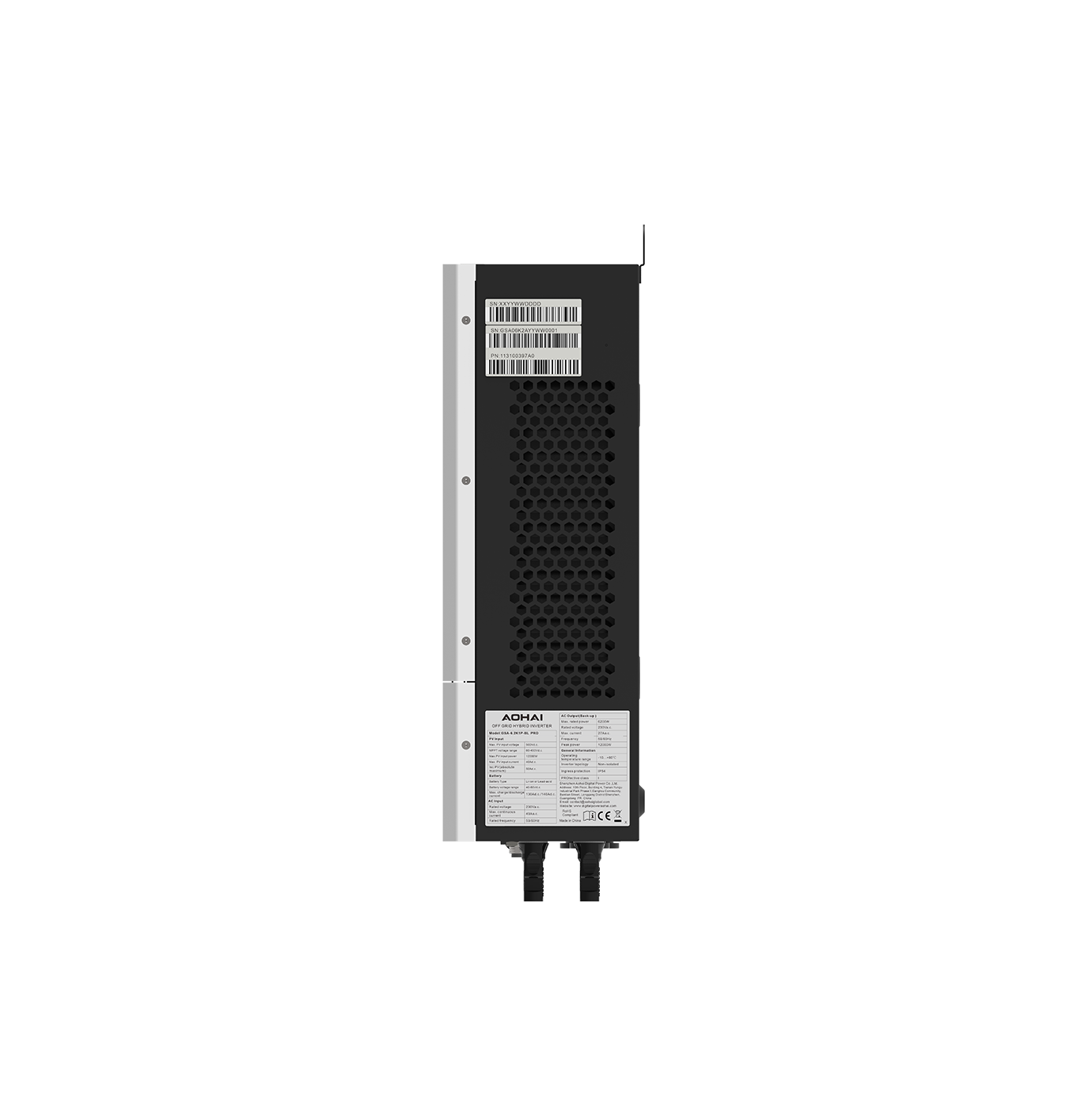

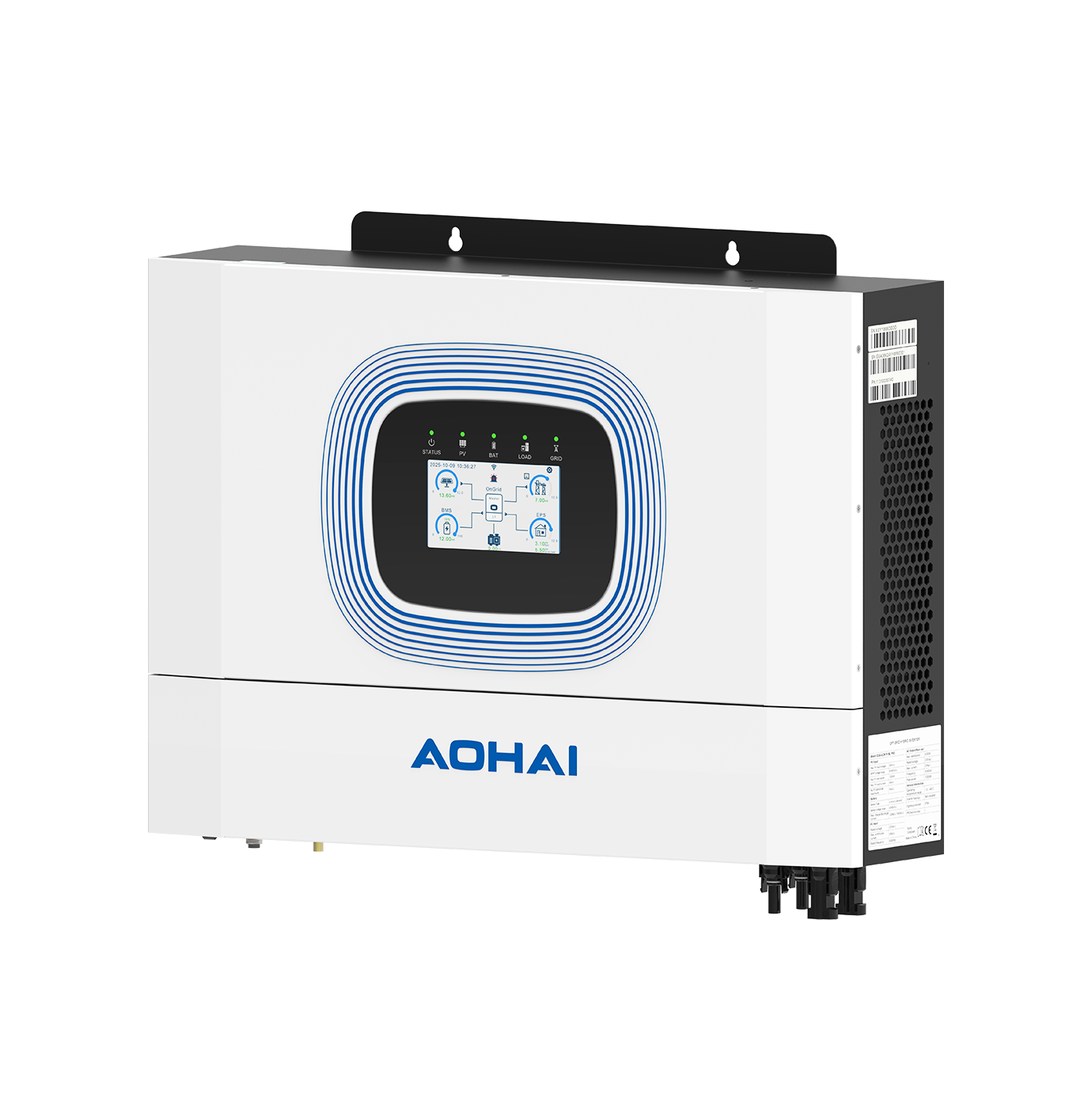

GSA-5-6.2K1P-BL-PRO

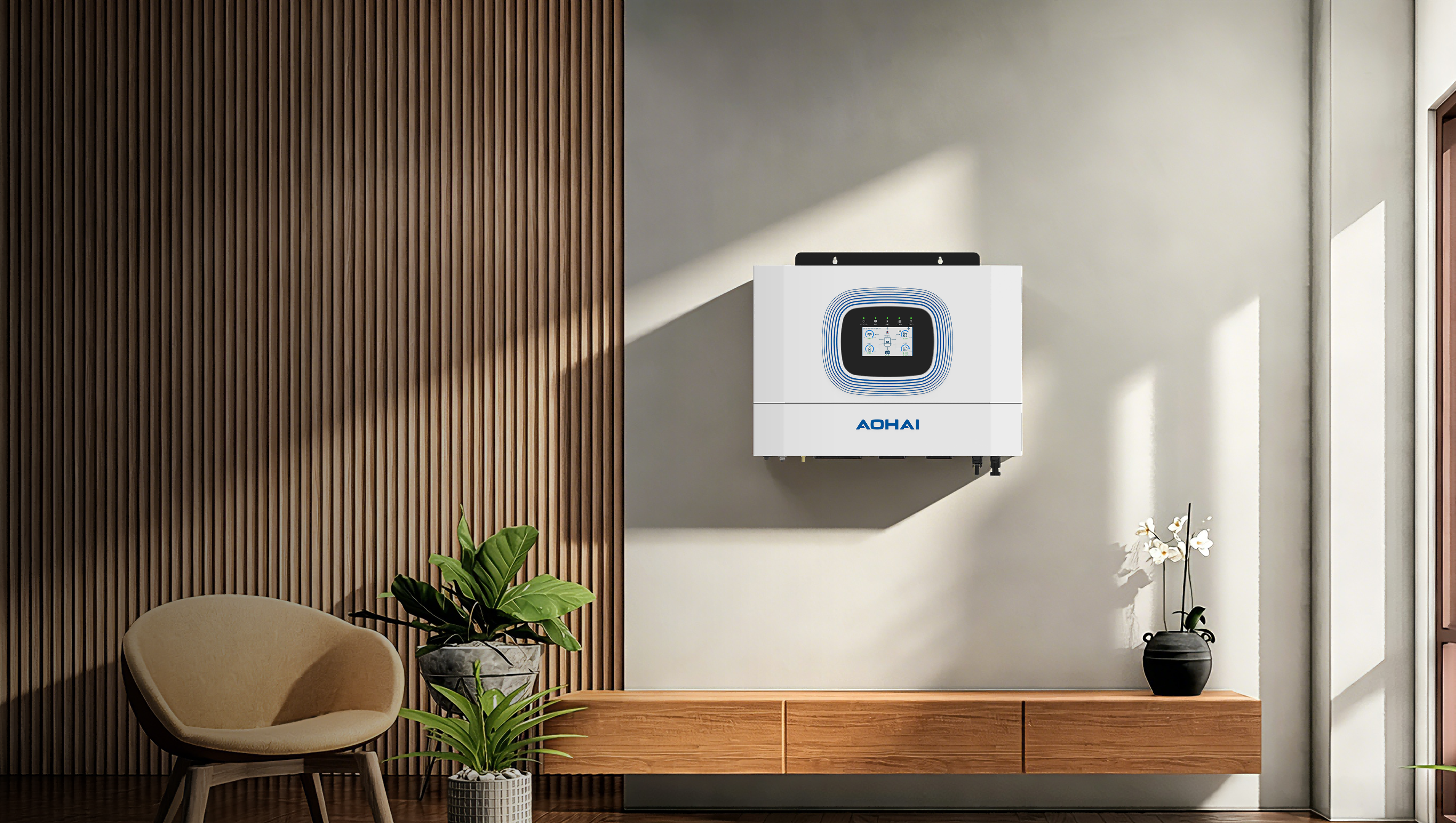

The GSA-5-6.2K1P-BL-PRO is a durable IP54 off-grid inverter. It supports 200% PV oversizing and maintains full power output without derating at 40°C. It is equipped with 40A high-current bypass and HD interactive display, plus a comprehensive 5-year warranty. An excellent choice for residential off-grid power systems.
Product Inquiry
Products Off-grid Inverter GSA-5-6.2K1P-BL-PRO
Feature Highlights
High Yields
  • 200% PV input power
  • Max. 130A charge current
  • Max. 140A discharge current
Flexible Connection
  • CAN/RS485 for BMS communication
  • CT access for anti-backflow function
  • Parallel connection up to 9 units
Safe & Reliable
  • 100% output at 40℃ condition
  • 2 times the rated power for 5s
  • 4ms on/off-grid transition
  • 40A bypass load-carrying
  • 5-year warranty
  • IP54 protection rating
Smart O&M
  • Built-in WiFi module for monitoring
  • USB and OTA upgrade supported
  • 4.3-inch HD color touchscreen
Product Overview
5kW
6.2kW
Product Model
GSA-5K1P-BL-PRO
Nominal Output Power
5000W
Max. PV Input Power
10000W
Max. Input Voltage
500V
Number of MPPT
1
Max. Input Current
40A
Max. Charge Current
110A
Max. Discharge Current
120A
Product Dimension
510*422*126mm
Weight
12.3kg
Ingress Protection
IP54
Communication
RS485/USB/CAN/WiFi
Product Model
GSA-6.2K1P-BL-PRO
Nominal Output Power
6200W
Max. PV Input Power
12000W
Max. Input Voltage
500V
Number of MPPT
1
Max. Input Current
40A
Max. Charge Current
130A
Max. Discharge Current
140A
Product Dimension
510*422*126mm
Weight
12.3kg
Ingress Protection
IP54
Communication
RS485/USB/CAN/WiFi
