Off-grid Inverter

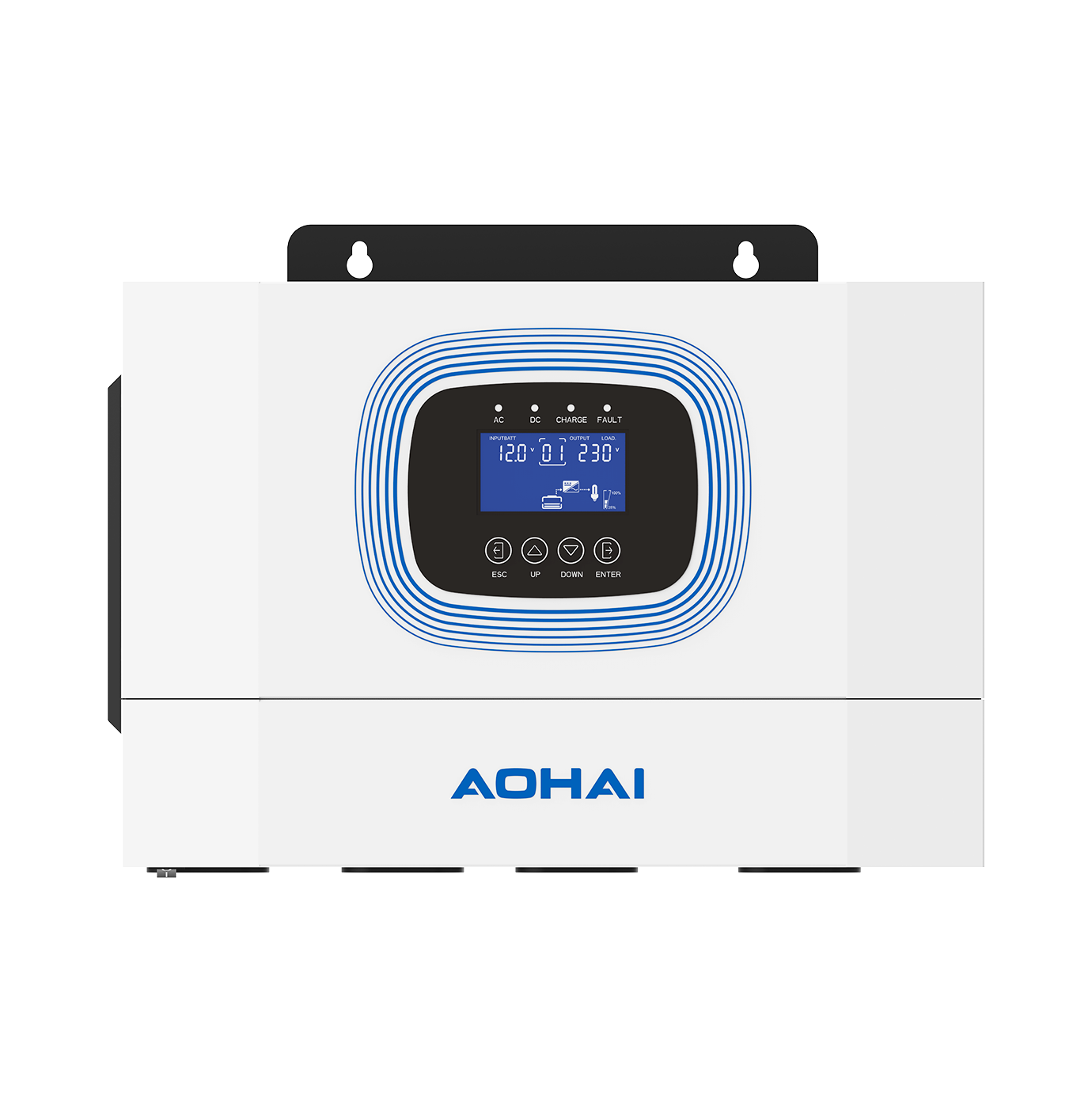

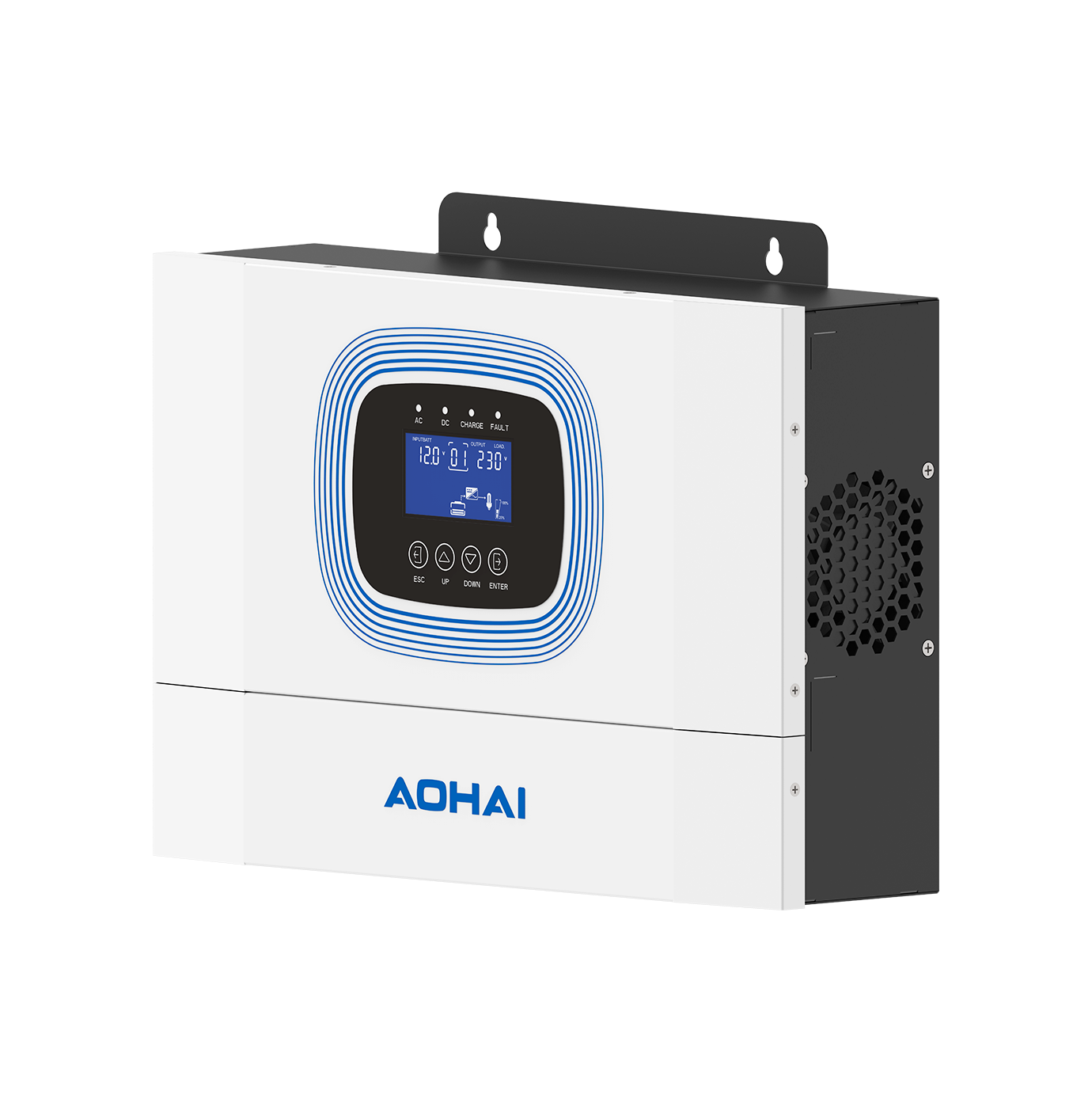

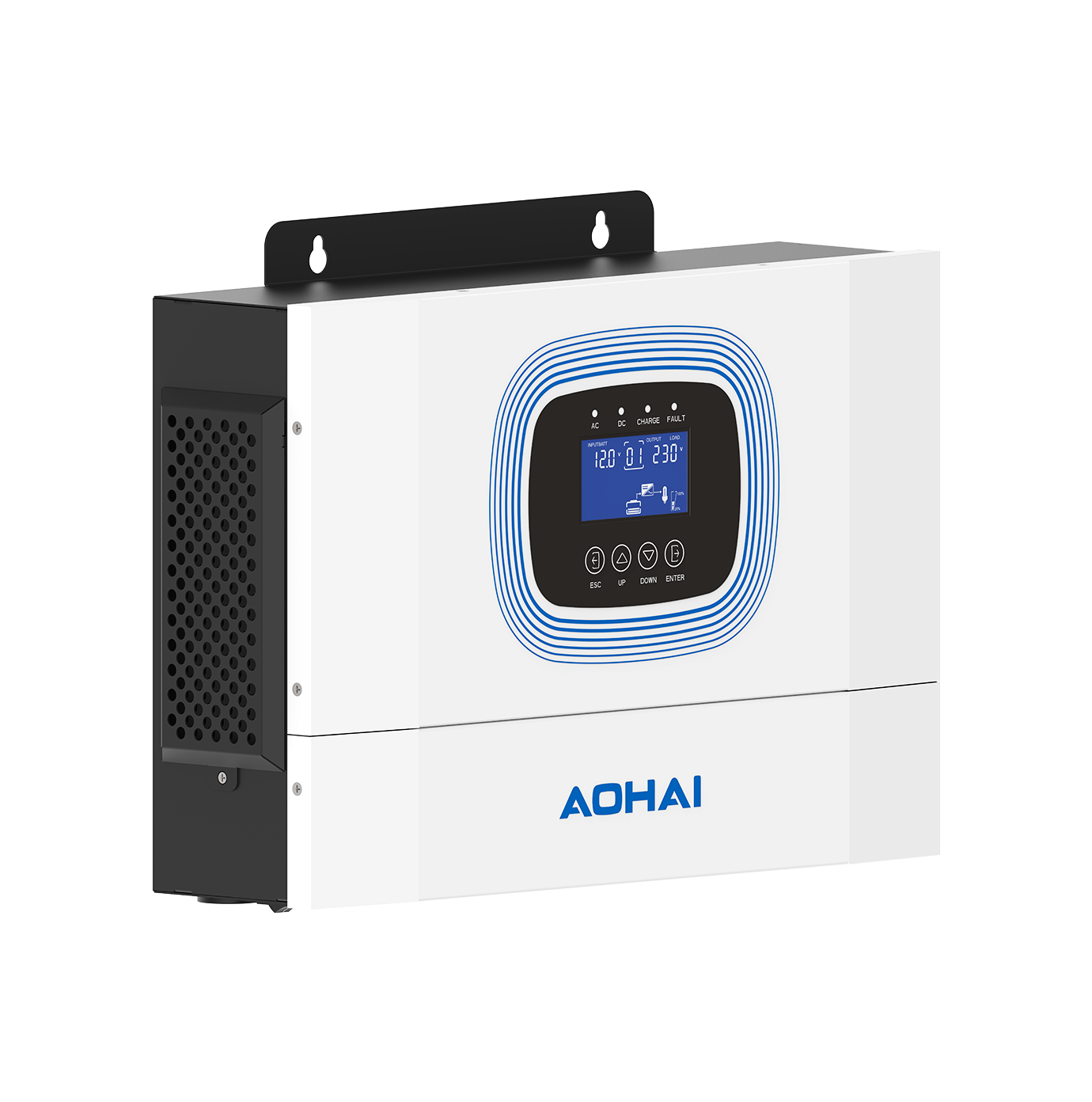

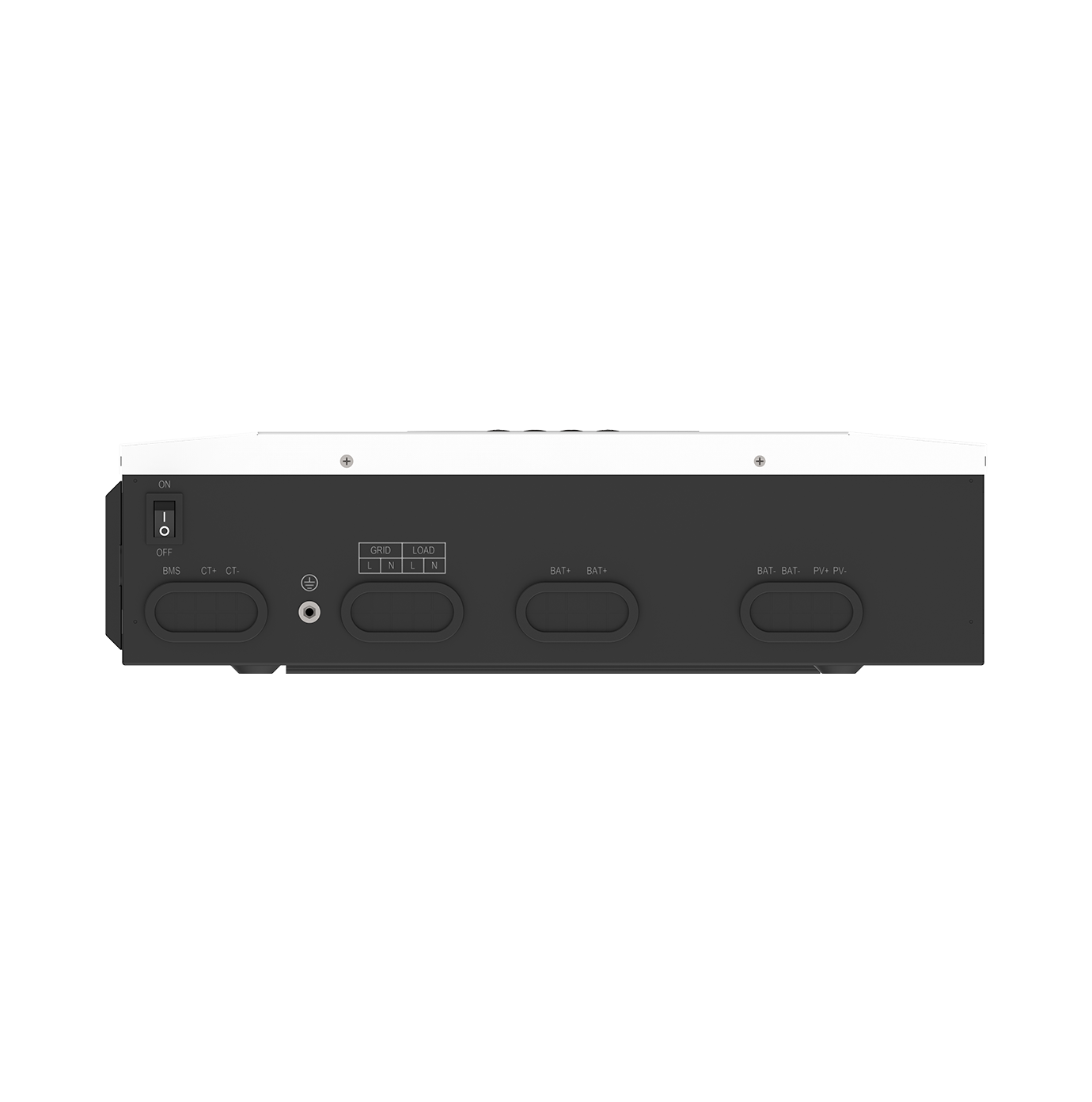

FSF-2K1P-BL-PRO

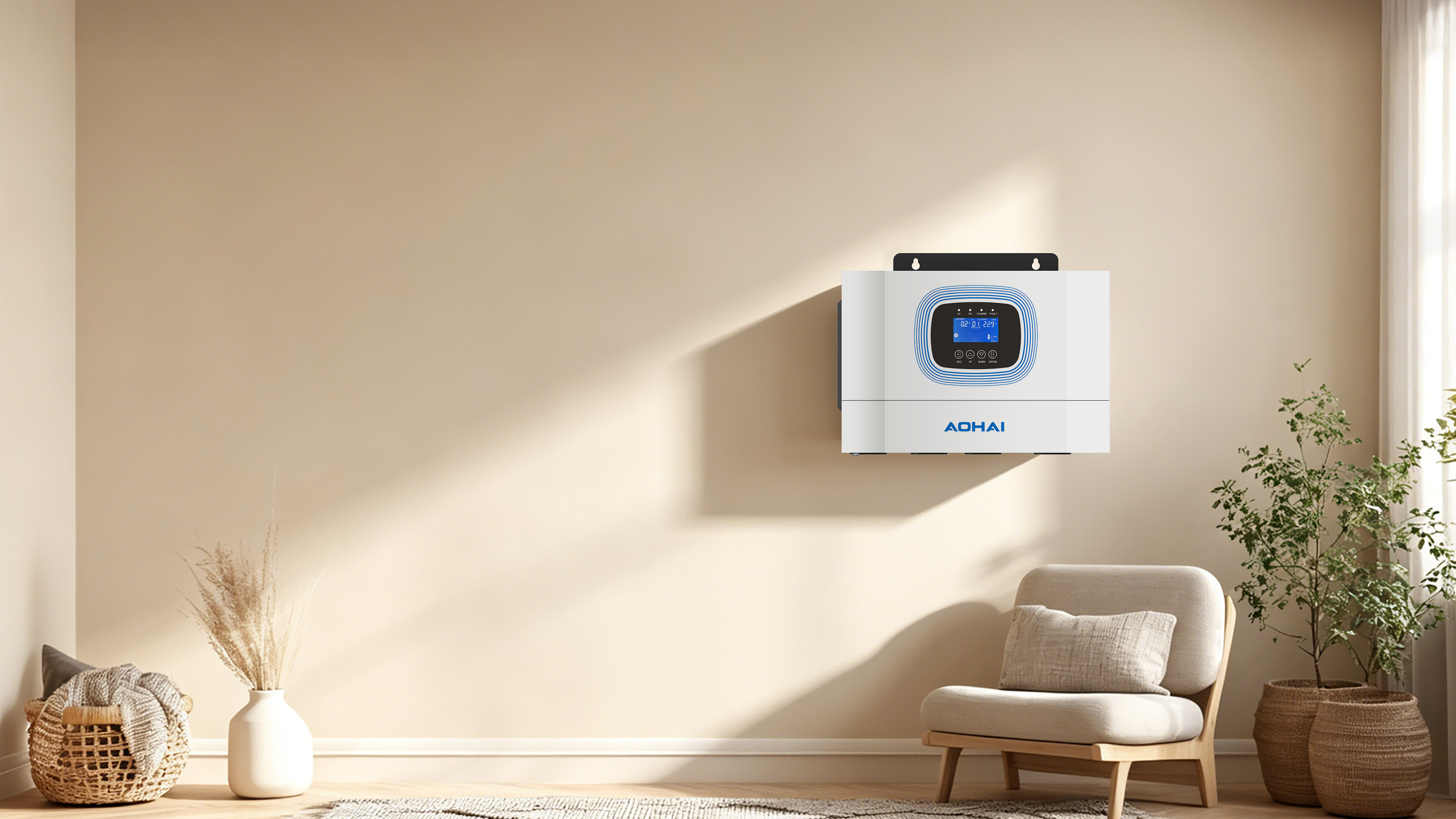

The FSF-2K1P-BL is a 2kW off-grid inverter designed for residential core power backup. It features excellent high-temperature resistance, Li-ion BMS compatibility, high-rate charge & discharge and standard CT port for anti-backflow function, ideal for household daily and emergency power supply.
Product Inquiry
Products Off-grid Inverter FSF-2K1P-BL-PRO
Feature Highlights
High Yields
  • 30~400V wide MPPT voltage range
  • Max. 150A charge current
  • Max. 160A discharge current
Flexible Connection
  • CAN/RS485 for BMS communication
  • CT access for anti-backflow function
Safe & Reliable
  • 100% output at 40℃ condition
  • 4ms on/off-grid transition
  • 2 times the rated power for 5s
  • 15A bypass load-carrying capacity
Smart O&M
  • Built-in WiFi module for monitoring
  • USB and OTA upgrade supported
Product Overview
2kW
Product Model
FSF-2K1P-BL-PRO
Nominal Output Power
2000W
Max. PV Input Power
2600W
Max. Input Voltage
400V
Number of MPPT
1
Max. Input Current
16A
Max. Charge Current
150A
Max. Discharge Current
160A
Product Dimension
363*266*100mm
Weight
4.3kg
Ingress Protection
IP21
Communication
RS485 /CAN /Wi-Fi
Resource Downloads
Datasheet
FSF-2K1P-BL-PRO_Datasheet_EN
1.64M | PDF
