Energy Storage Battery
AS-7.68-25.6HD-GL1

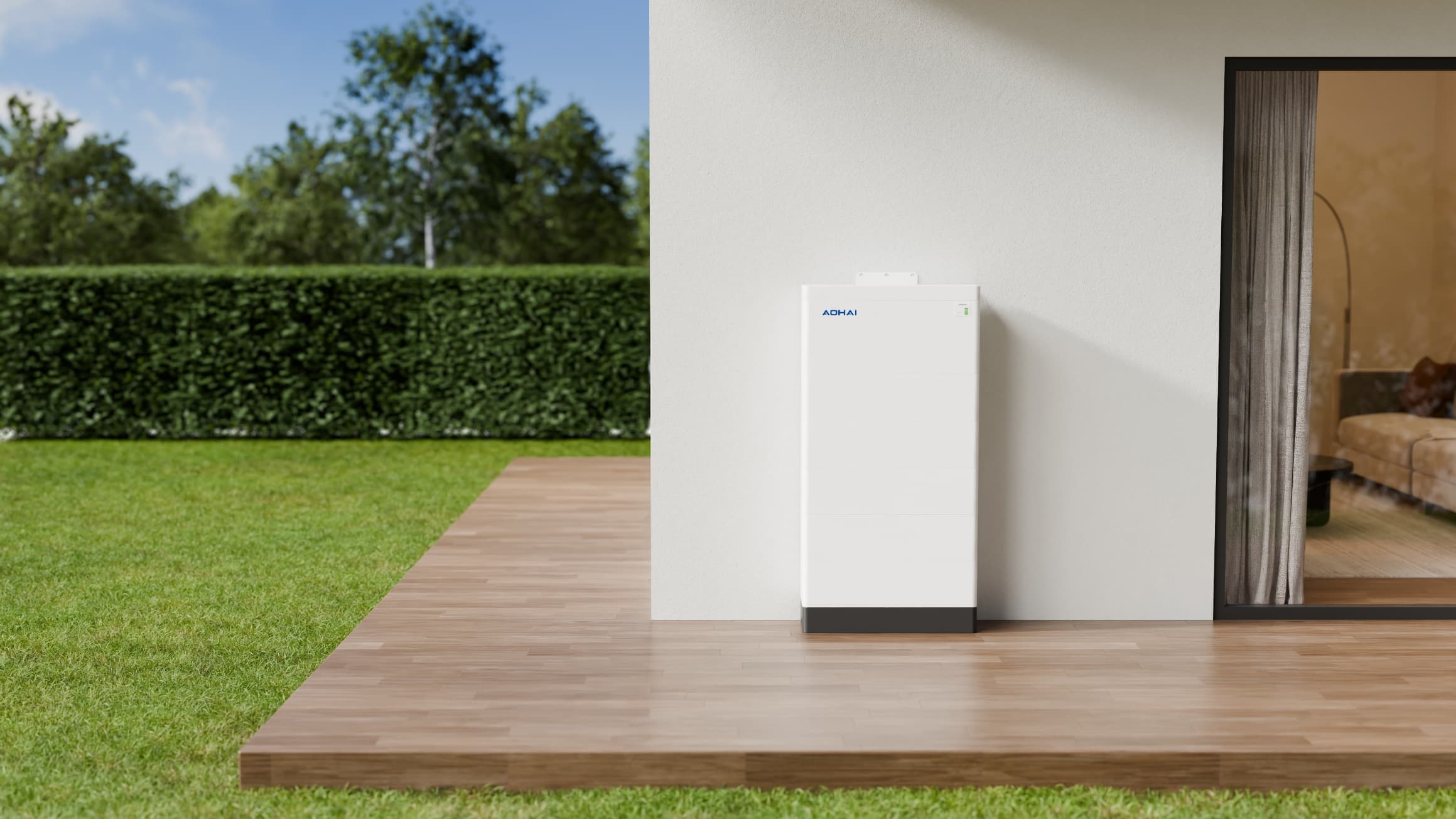

The AS-7.68-25.6HD-GL1 is a high-voltage energy storage battery covering an energy range of 7.68-25.6kWh. Featuring standardized reserved interfaces, it supports on-demand functional upgrades. With excellent performance and stable operation, the battery builds a safe and reliable energy support system for home energy storage scenari
Product Inquiry
Products Energy Storage Battery AS-7.68-25.6HD-GL1
Feature Highlights
Flexible Expansion
  • Max. 10 layers for max. capacity of 25.6kWh
Function Extension
  • Multi interfaces ready for future function extension
Modular Design

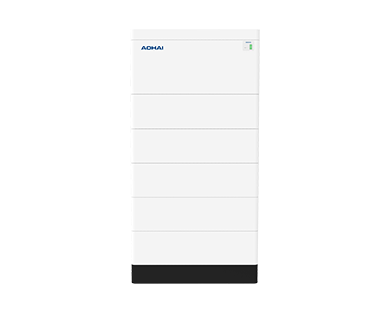

  • Stackable and modular design for easy installation and transportation
Safe & Reliable

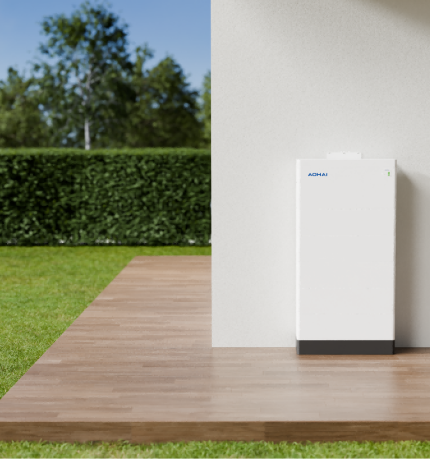

  • IP65 rating for outdoor installation
  • Life cycles of 6000 times
Product Overview
7.68kWh
10.24kWh
12.8kWh
15.36kWh
17.92kWh
20.48kWh
23.04kWh
25.6kWh
Number of Layers
3
Energy
7.68kWh
Operating Voltage Range
129.6V~168.48V
Max. Continuous Charge Current
50A
Max. Continuous Discharge Current
50A
Operating Temperature
Charge: 0℃~55℃; Discharge: -20℃~60℃
Ingress Protection
IP65
Product Dimension
600*870*210mm
Weight
102.5kg
Number of Layers
4
Energy
10.24kWh
Operating Voltage Range
172.8V~224.64V
Max. Continuous Charge Current
50A
Max. Continuous Discharge Current
50A
Operating Temperature
Charge: 0℃~55℃; Discharge: -20℃~60℃
Ingress Protection
IP65
Product Dimension
600*1030*210mm
Weight
129kg
Number of Layers
5
Energy
12.8kWh
Operating Voltage Range
216V~280.8V
Max. Continuous Charge Curren
50A
Max. Continuous Discharge Current
50A
Operating Temperature
Charge: 0℃~55℃; Discharge: -20℃~60℃
Ingress Protection
IP65
Product Dimension
600*1190*210mm
Weight
155.5kg
Number of Layers
6
Energy
15.36kWh
Operating Voltage Range
259.2V~336.96V
Max. Continuous Charge Current
50A
Max. Continuous Discharge Current
50A
Operating Temperature
Charge: 0℃~55℃; Discharge: -20℃~60℃
Ingress Protection
IP65
Product Dimension
600*1350*210mm
Weight
182kg
Number of Layers
7
Energy
17.92kWh
Operating Voltage Range
302.4V~393.12V
Max. Continuous Charge Current
50A
Max. Continuous Discharge Current
50A
Operating Temperature
Charge: 0℃~55℃; Discharge: -20℃~60℃
Ingress Protection
IP65
Product Dimension
600*1510*210mm
Weight
208.5kg
Number of Layers
8
Energy
20.48kWh
Operating Voltage Range
345.6~449.28V
Max. Continuous Charge Current
50A
Max. Continuous Discharge Current
50A
Operating Temperature
Charge: 0℃~55℃; Discharge: -20℃~60℃
Ingress Protection
IP65
Product Dimension
600*1670*210mm
Weight
235kg
Number of Layers
9
Energy
23.04kWh
Operating Voltage Range
388.8V~505.44V
Max. Continuous Charge Current
50A
Max. Continuous Discharge Current
50A
Operating Temperature
Charge: 0℃~55℃; Discharge: -20℃~60℃
Ingress Protection
IP65
Product Dimension
600*1830*210mm
Weight
261.5kg
Number of Layers
10
Energy
25.6kWh
Operating Voltage Range
432V~561.6V
Max. Continuous Charge Current
50A
Max. Continuous Discharge Current
50A
Operating Temperature
Charge: 0℃~55℃; Discharge: -20℃~60℃
Ingress Protection
IP65
Product Dimension
600*1990*210mm
Weight
288kg
Resource Downloads
Datasheet
AS-7.68-25.6HD-GL1_Datasheet_EN
4.63M | PDF
