Off-grid Inverter
AO-3-6KSL-G3

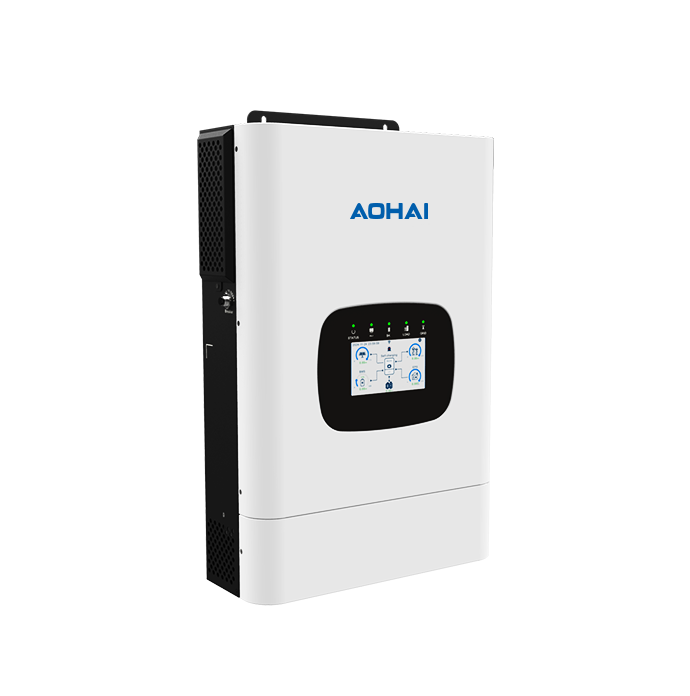

The AO-3-6KSL-G3 off-grid inverter features a 4.3'' HD color touchscreen for intuitive operation. It comes with two independent input ports (mains power and diesel generator) and dual AC outputs to enable smart load management. Built-in WiFi communication module enables remote monitoring and O&M via the HaiPower App, significantly enhancing usability and management efficiency.
Product Inquiry
Products Off-grid Inverter AO-3-6KSL-G3
Feature Highlights
High Yields
  • Max. 27A input current
  • Max. 120A charge current
  • Max. 137A discharge current
Flexible Connection

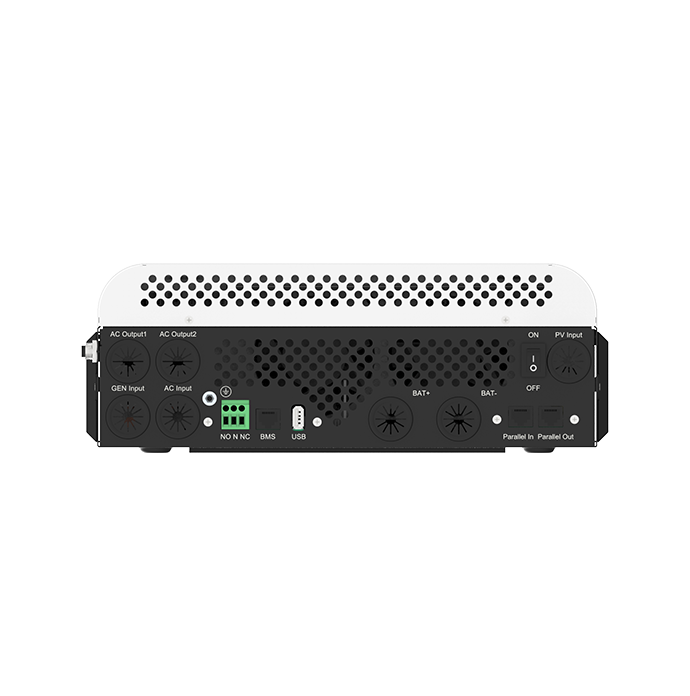

  • Independent grid or generator input
  • Support smart load management
  • Parallel connection up to 9 units
Safe & Reliable
  • 4ms seamless switching
  • 2 times the rated power for 5s
Smart O&M
  • Built-in WiFi module for monitoring

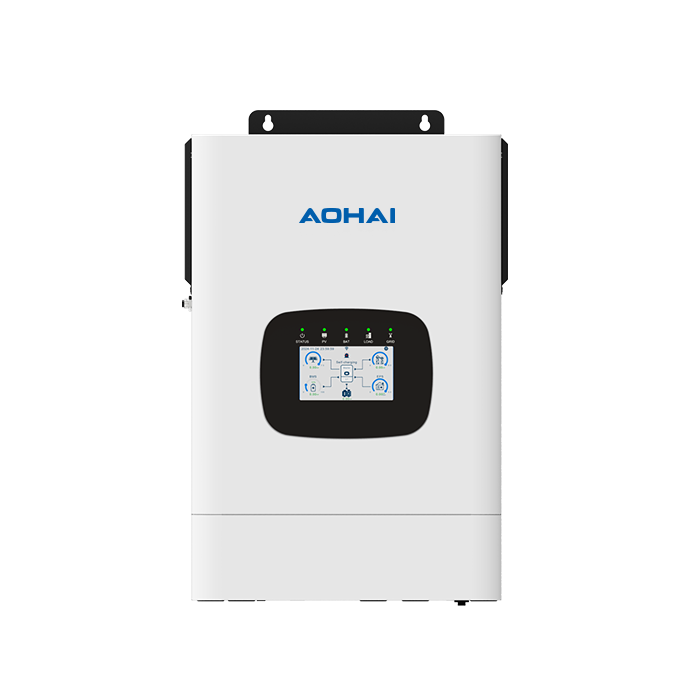

  • 4.3'' 800x480 HD touchscreen
  • USB and OTA upgrade supported
Product Overview
3kW
4kW
5kW
6kW
Product Model
AO-3KSL-G3
Nominal Output Power
3000W
Max. PV Input Power
4500W
Max. Input Voltage
500V
Number of MPPT
1
Max. Input Current
18A
Max. Charge Current
120A
Max. Discharge Current
137A
Product Dimension
333*505*120mm
Weight
10.6kg
Ingress Protection
IP21
Parallel Capability
-
Product Model
AO-4KSL-G3
Nominal Output Power
4000W
Max. PV Input Power
6000W
Max. Input Voltage
500V
Number of MPPT
1
Max. Input Current
18A
Max. Charge Current
120A
Max. Discharge Current
137A
Product Dimension
333*505*120mm
Weight
10.6kg
Ingress Protection
IP21
Parallel Capability
-
Product Model
AO-5KSL-G3
Nominal Output Power
5000W
Max. PV Input Power
7500W
Max. Input Voltage
550V
Number of MPPT
1
Max. Input Current
27A
Max. Charge Current
100A
Max. Discharge Current
115A
Product Dimension
333*505*120mm
Weight
10.6kg
Ingress Protection
IP21
9
Product Model
AO-6KSL-G3
Nominal Output Power
6000W
Max. PV Input Power
9000W
Max. Input Voltage
550V
Number of MPPT
1
Max. Input Current
27A
Max. Charge Current
120A
Max. Discharge Current
137A
Product Dimension
333*505*120mm
Weight
10.6kg
Ingress Protection
IP21
Parallel Capability
9
Resource Downloads
Datasheet
AO-3-6KSL-G3_Datasheet_EN
522.18K | PDF
