All-in-One Energy Storage

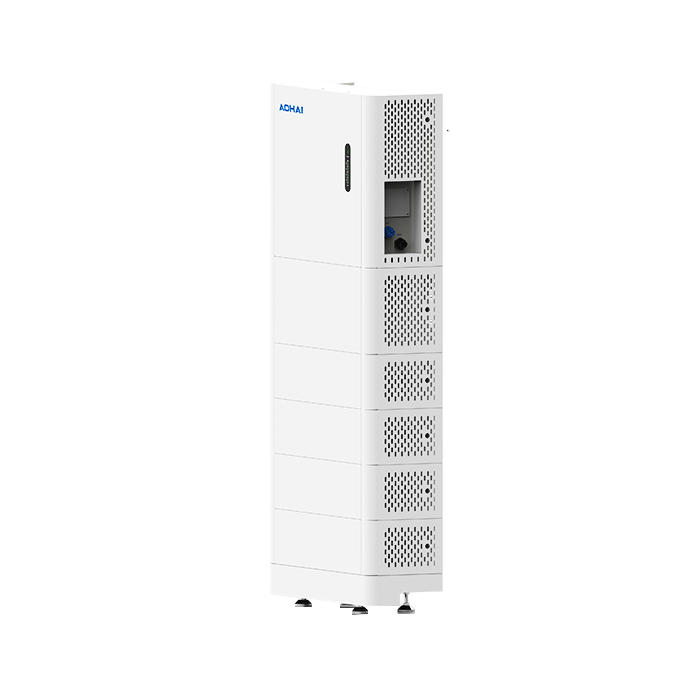

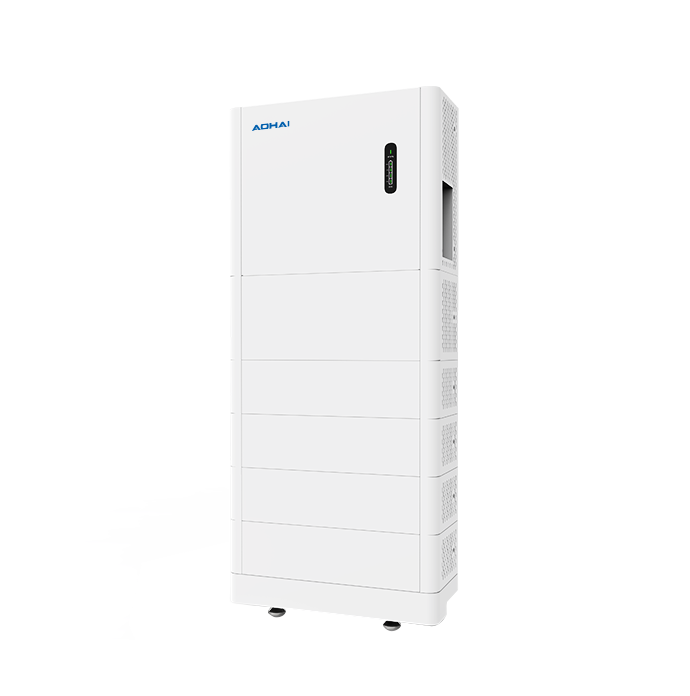

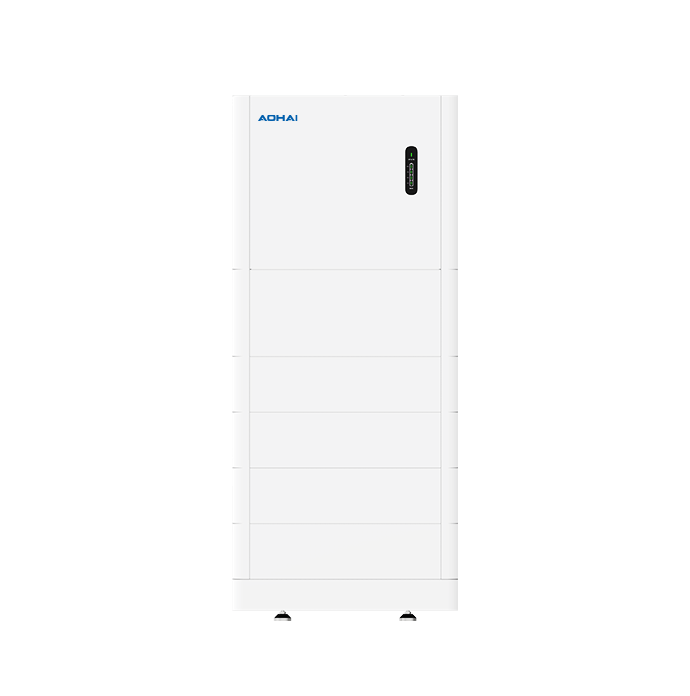

AHW-6-10KTHD-G1
The AHW-6-10KTHD-G1 three-phase all-in-one energy storage system integrates an inverter and battery modules, with flexible capacity expansion to meet diverse energy storage needs. Boasting 100% three-phase unbalanced output capability, it significantly enhances power distribution flexibility; equipped with AFCI detection function, it builds a solid safety barrier for home electricity scenarios.
Product Inquiry
Products All-in-One Energy Storage AHW-6-10KTHD-G1
Feature Highlights
High Yields
  • Dual MPPTs
  • Max. 16A input current per MPPT
  • Max. 25A charge/discharge current
  • Support AC coupling function
Smart Management
  • Support EMS function
  • Support Peak shaving
Safe & Reliable
  • 100% three-phase unbalanced output
  • 10ms on/off-grid transiition
  • AFCI detection and protection
User-Friendly
  • Compact design for simplified installation
  • Silent performance with noise ＜25dB
  • USB and OTA upgrade supported
Product Overview
6kW | 7.68~25.6kWh
7kW | 7.68~25.6kWh
8kW | 7.68~25.6kWh
10kW| 7.68~25.6kWh
Product Model
AHW-6KTHD-G1
Nominal Output Power
6000W
Max. PV Input Powe
9000W
Max. Input Voltage
1000V
Number of MPPT
2
Max. Input Current
16+16A
Max. Charge Current
25A
Max. Discharge Current
25A
Ingress Protection
IP65
Battery Module Energy
2.56kWh
Battery Module Layers
3~10
Battery Energy Range
7.68~25.6kWh
Product Model
AHW-7KTHD-G1
Nominal Output Power
7000W
Max. PV Input Power
10500W
Max. Input Voltage
1000V
Number of MPPT
2
Max. Input Current
16+16A
Max. Charge Current
25A
Max. Discharge Current
25A
Ingress Protection
IP65
Battery Module Energy
2.56kWh
Battery Module Layers
3~10
Battery Energy Range
7.68~25.6kWh
Product Model
AHW-8KTHD-G1
Nominal Output Power
8000W
Max. PV Input Power
12000W
Max. Input Voltage
1000V
Number of MPPT
2
Max. Input Current
16+16A
Max. Charge Current
25A
Max. Discharge Current
25A
Ingress Protectio
IP65
Battery Module Energy
2.56kWh
Battery Module Layers
3~10
Battery Energy Range
7.68~25.6kWh
Product Model
AHW-10KTHD-G1
Nominal Output Power
10000W
Max. PV Input Power
15000W
Max. Input Voltage
1000V
Number of MPPT
2
Max. Input Curren
16+16A
Max. Charge Current
25A
Max. Discharge Current
25A
Ingress Protection
IP65
Battery Module Energy
2.56kWh
Battery Module Layers
3~10
Battery Energy Range
7.68~25.6kWh
Resource Downloads
Datasheet
AHW-6-10KTHD-G1_Datasheet_EN
6.10M | PDF
