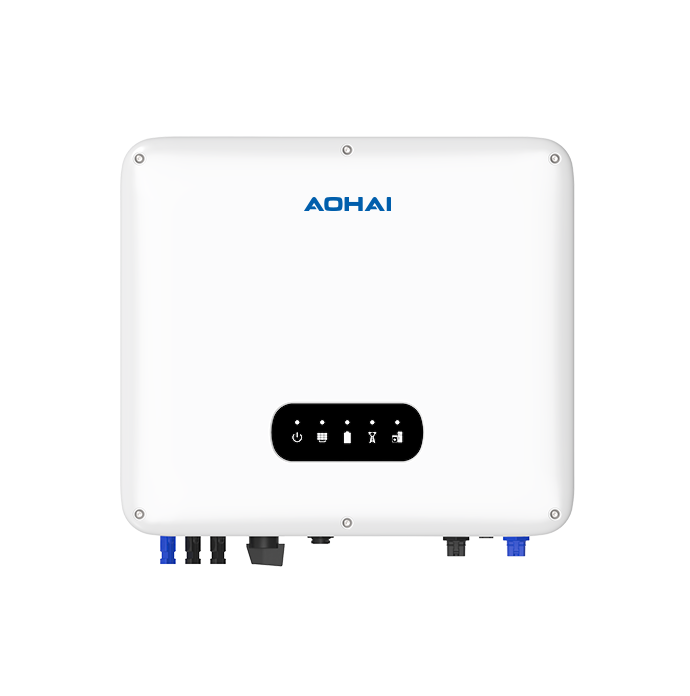

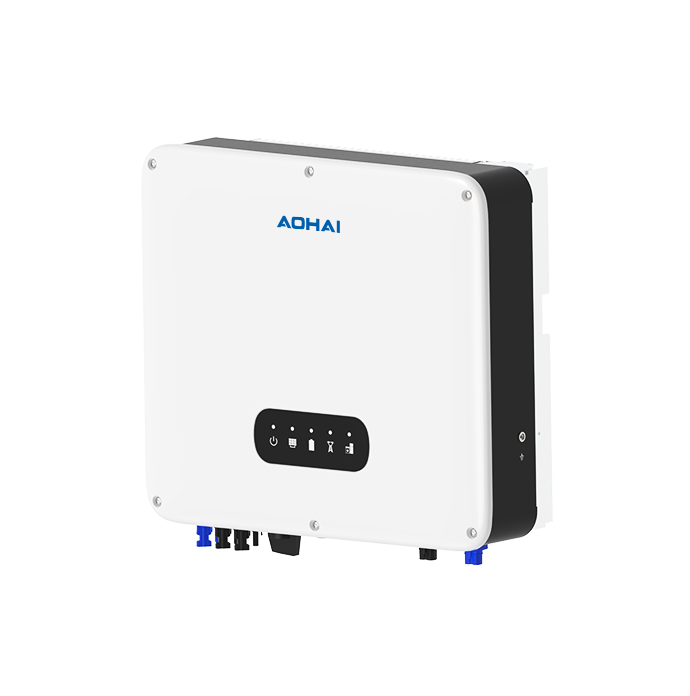

Hybrid Inverter
AH-4-10KTH-G1
AH-4-10KTH-G1 three-phase hybrid Inverter with dual MPPTs, compatible with high-voltage batteries. It features 100% three-phase unbalanced output for enhanced load distribution flexibility.​ Paired with HaiPower App, it enables EMS function and peak shaving to reduce electricity costs and boost energy utilization returns.
Product Inquiry
Products Hybrid Inverter AH-4-10KTH-G1
Feature Highlights
High Yields
  • Dual MPPTs
  • Max. 16A input current per MPPT
  • Support AC coupling
Smart Management
  • Support EMS function
  • Support peak shaving
Safe & Reliable
  • 10ms seamless switching
  • 100% unbalanced output

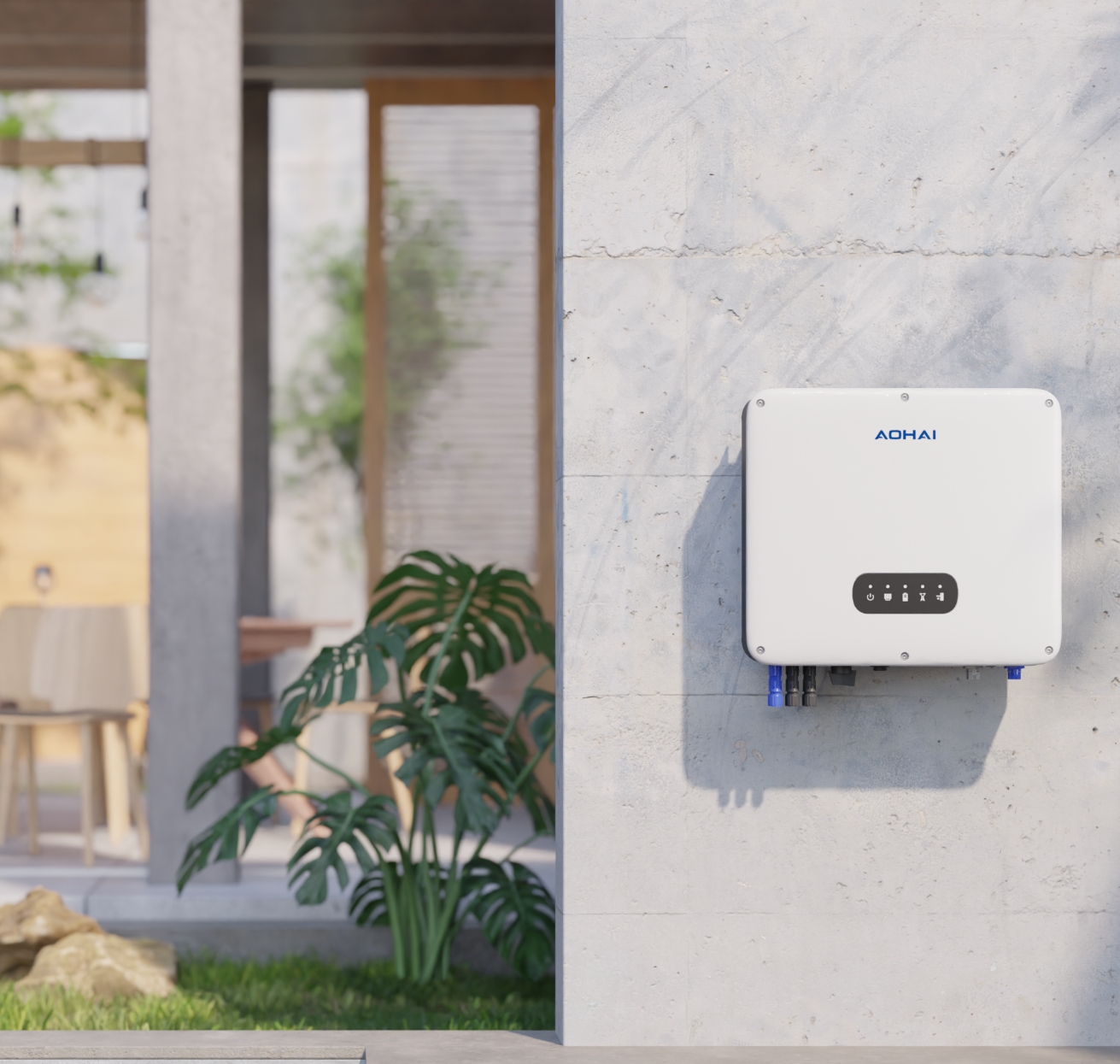

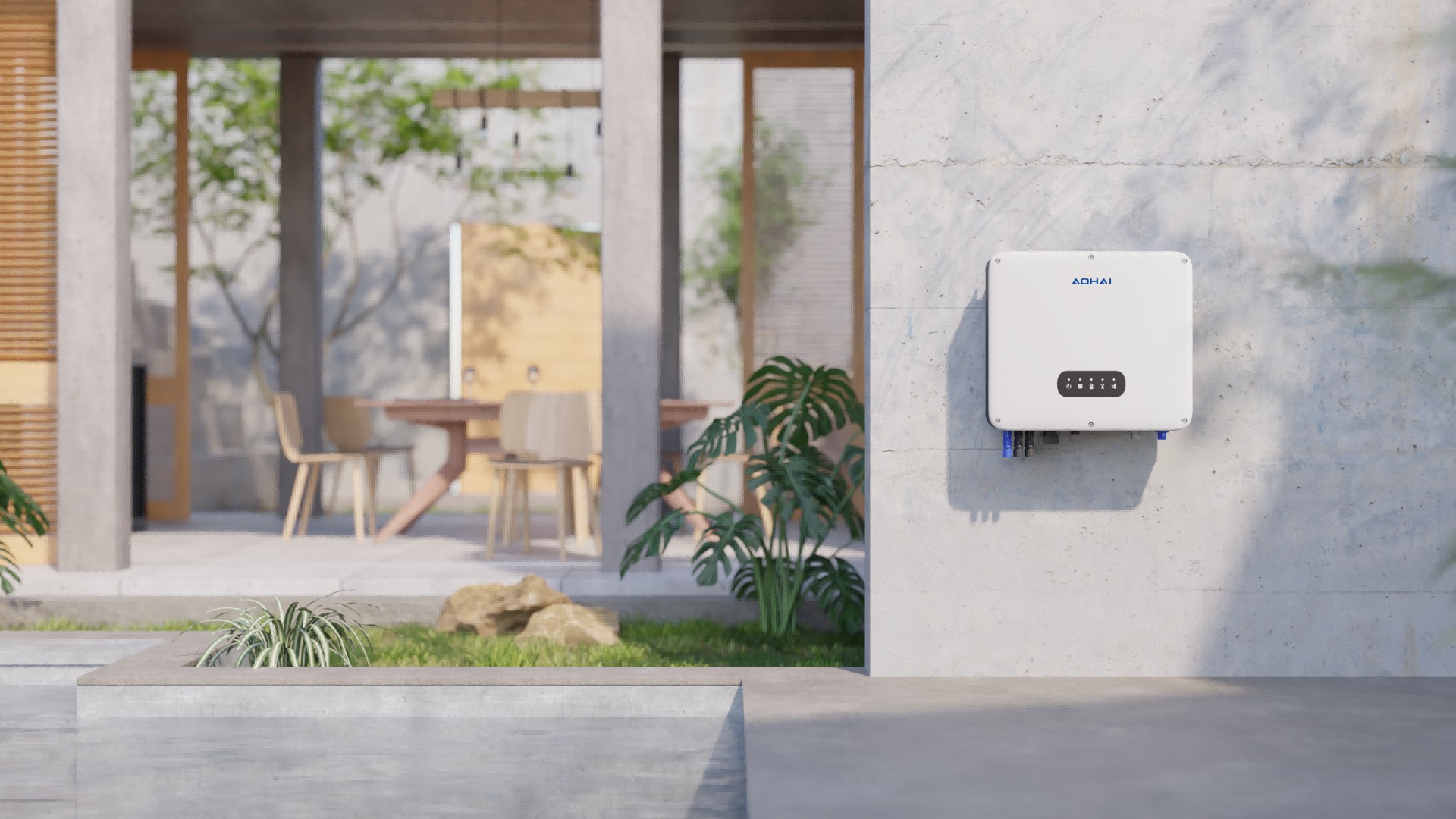

  • IP66 rating for outdoor installation
User-Friendly
  • Built-in WiFi module for monitoring
  • Silent design with noise ≤35dB
Product Overview
4kW
5kW
6kW
7kW
8kW
10kW
Product Model
AH-4KTH-G1
Nominal Output Power
4000W
Max. PV Input Power
6000W
Max. Input Voltage
1000V
Number of MPPT
2
Max. Input Current
16+16A
Max Charge Current
25A
Max. Discharge Current
25A
Product Dimension
545*480*195mm
Weight
31.9kg
Weight Ingress Protection
IP66
Parallel Capability
-
Product Model
AH-5KTH-G1
Nominal Output Power
5000W
Max. PV Input Power
7500W
Max. Input Voltage
1000V
Number of MPPT
2
Max. Input Current
16+16A
Max Charge Current
25A
Max. Discharge Current
25A
Product Dimension
545*480*195mm
Weight
31.9kg
Ingress Protection
IP66
Parallel Capability
-
Product Model
AH-6KTH-G1
Nominal Output Power
6000W
Max. PV Input Power
9000W
Max. Input Voltage
1000V
Number of MPPT
2
Max. Input Current
16+16A
Max Charge Current
25A
Max. Discharge Current
25A
Product Dimension
545*480*195mm
Weight
31.9kg
Ingress Protection
IP66
Parallel Capability
-
Product Model
AH-7KTH-G1
Nominal Output Power
7000W
Max. PV Input Power
10500W
Max. Input Voltage
1000V
Number of MPPT
2
Max. Input Current
16+16A
Max Charge Current
25A
Max. Discharge Current
25A
Product Dimension
545*480*195mm
Weight
31.9kg
Ingress Protection
IP66
Parallel Capability
-
Product Model
AH-8KTH-G1
Nominal Output Power
8000W
Max. PV Input Power
12000W
Max. Input Voltage
1000V
Number of MPPT
2
Max. Input Current
16+16A
Max Charge Current
25A
Max. Discharge Current
25A
Product Dimension
545*480*195mm
Weight
31.9kg
Ingress Protection
IP66
Parallel Capability
-
Product Model
AH-10KTH-G1
Nominal Output Power
10000W
Max. PV Input Power
15000W
Max. Input Voltage
1000V
Number of MPPT
2
Max. Input Current
16+16A
Max Charge Current
25A
Max. Discharge Current
25A
Product Dimension
545*480*195mm
Weight
31.9kg
Ingress Protection
IP66
Parallel Capability
-
Resource Downloads
Datasheet
AH-4-10KTH-G1_Datasheet_EN
13.61M | PDF
