Hybrid Inverter

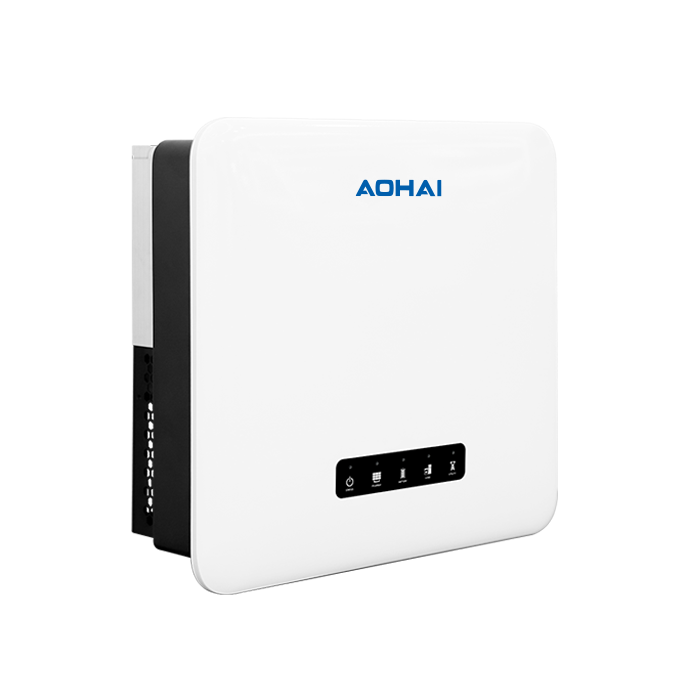

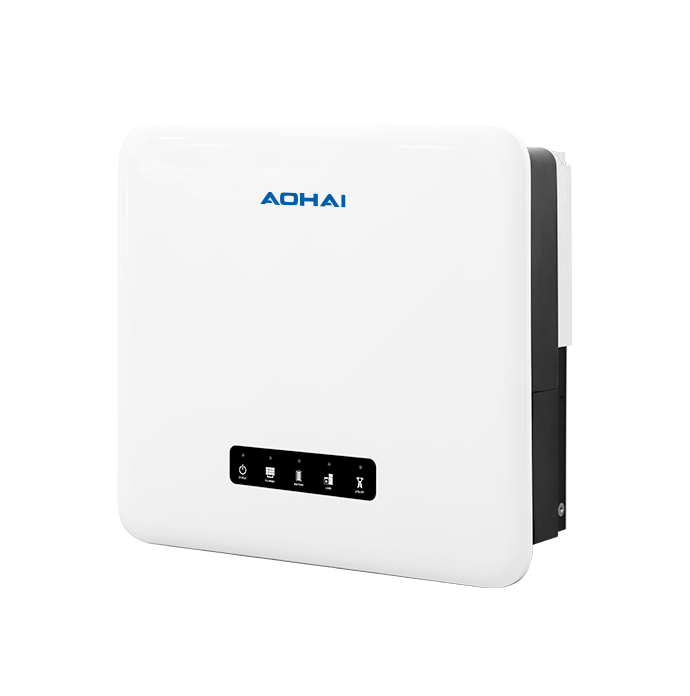

AH-3-6KSL-G2
The AH-3-6KSL-G2 is a user-friendly, safe and reliable single-phase hybrid inverter equipped with dual MPPT trackers. Supporting low-voltage battery energy storage, it delivers a battery charging/discharging current of up to 120A for fast energy storage and efficient power supply. Paired with HaiPower App, it enables EMS control and peak shaving to cut electricity costs and boost returns.
Product Inquiry
Products Hybrid Inverter AH-3-6KSL-G2
Feature Highlights
High Yields
  • Dual MPPTs
  • Max. 16A input current per MPPT
  • Max. 120A charge/discharge current
Smart Management
  • EMS function supported
  • Peak shaving supported
Safe & Reliable
  • EPS output for backup power supply
  • Strong instand overload capacity
User-Friendly
  • Silent design with noise ≤25dB
  • USB and OTA upgrade supported
Product Overview
3kW
3.6kW
4kW
4.6kW
5kW
6kW
Product Model
AH-3KSL-G2
Nominal Output Power
3000W
Max. PV Input Power
6000W
Max. Input Voltage
550V
Number of MPPT
2
Max. Input Current
16+16A
Max Charge Current
66.7A
Max. Discharge Current
66.7A
Product Dimension
550*500*186mm
Weight
30kg
Ingress Protection
IP65
Parallel Capability
-
Product Model
AH-3.6KSL-G2
Nominal Output Power
3600W
Max. PV Input Power
7200W
Max. Input Voltage
550V
Number of MPPT
2
Max. Input Current
16+16A
Max Charge Current
80A
Max. Discharge Current
80A
Product Dimension
550*500*186mm
Weight
30kg
Ingress Protection
IP65
Parallel Capability
-
Product Model
AH-4KSL-G2
Nominal Output Power
4000W
Max. PV Input Power
8000W
Max. Input Voltage
550V
Number of MPPT
2
Max. Input Current
16+16A
Max Charge Current
87A
Max. Discharge Current
87A
Product Dimension
550*500*186mm
Weight
30kg
Ingress Protection
IP65
Parallel Capability
-
Product Model
AH-4.6KSL-G2
Nominal Output Power
4600W
Max. PV Input Power
9200W
Max. Input Voltage
550V
Number of MPPT
2
Max. Input Current
16+16A
Max Charge Current
100A
Max. Discharge Current
100A
Product Dimension
550*500*186mm
Weight
30kg
Ingress Protection
IP65
Parallel Capability
-
Product Model
AH-5KSL-G2
Nominal Output Power
5000W
Max. PV Input Power
10000W
Max. Input Voltage
550V
Number of MPPT
2
Max. Input Current
16+16A
Max Charge Current
100A
Max. Discharge Current
100A
Product Dimension
550*500*186mm
Weight
30kg
Ingress Protection
IP65
Parallel Capability
-
Product Model
AH-6KSL-G2
Nominal Output Power
6000W
Max. PV Input Power
10800W
Max. Input Voltage
550V
Number of MPPT
2
Max. Input Current
16+16A
Max Charge Current
120A
Max. Discharge Current
120A
Product Dimension
550*500*186mm
Weight
30kg
Ingress Protection
IP65
Parallel Capability
-
Installation Video
Play
Resource Downloads
Datasheet
AH-3-6KSL-G2_Datasheet_EN
14.64M | PDF
